[DataRay] Beam Profiler

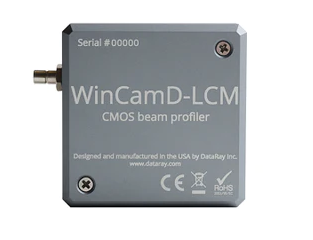

WinCamD-LCM – 1" CMOS Beam Profiler
1" CMOS Beam Profiler System, 190 to 1610* nm
- Features
- New MagND™ stackable magnetic ND filters – store spare filters on back of camera
- 355 to 1150 nm, standard CMOS detector
- Up to 60+ FPS
- 4.2Mpixel, 2048 x 2048 pixels, 11.3 x 11.3 mm active area
- 5.5 µm pixels
- HyperCal™ – Dynamic noise and baseline correction software
- Port-powered USB 3.0; flexible screw locking 3 m cable; no power brick
- 12-bit ADC, on-board microprocessor
- Window-free sensors standard for no fringing
- 25,000:1 electronic auto-shutter, 79 µs to 2 s
- 2,500:1 SNR
- Global shutter, optical/TTL trigger
- Isolated pulse triggering and parallel capture
- Field-replaceable image sensors
- M² option – beam propagation analysis, divergence, focus
- Applications
- CW and pulsed laser profiling
- Field servicing of lasers and laser-based systems
- Optical assembly & instrument alignment
- Beam wander & logging
- M² measurement with available M2DU stage
